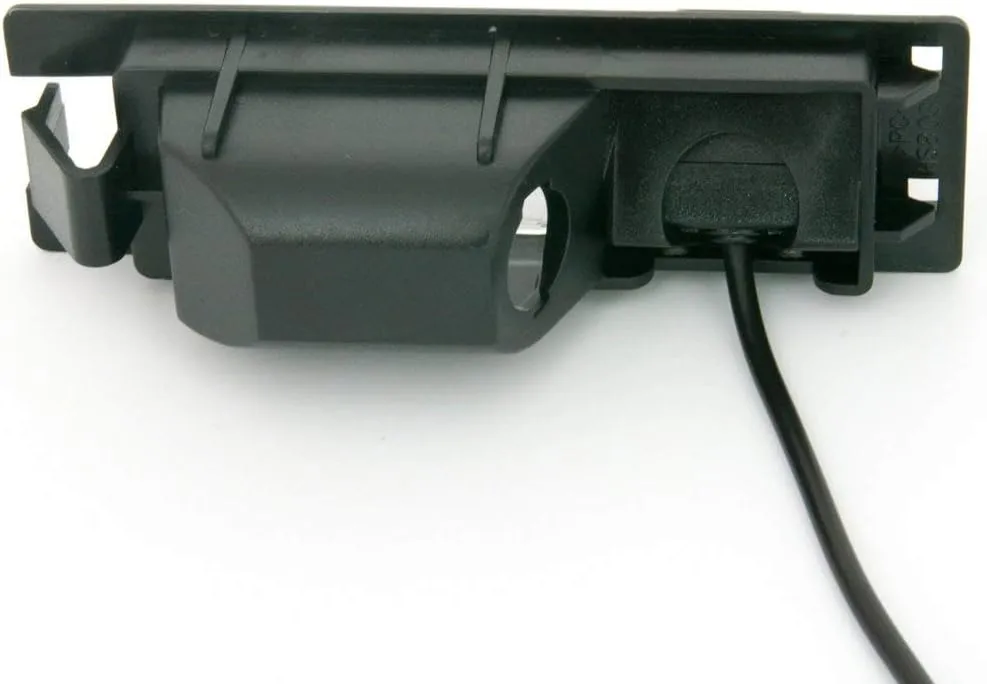

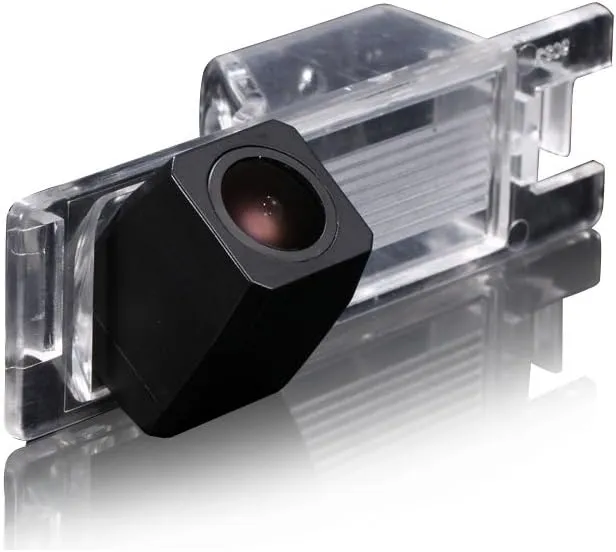

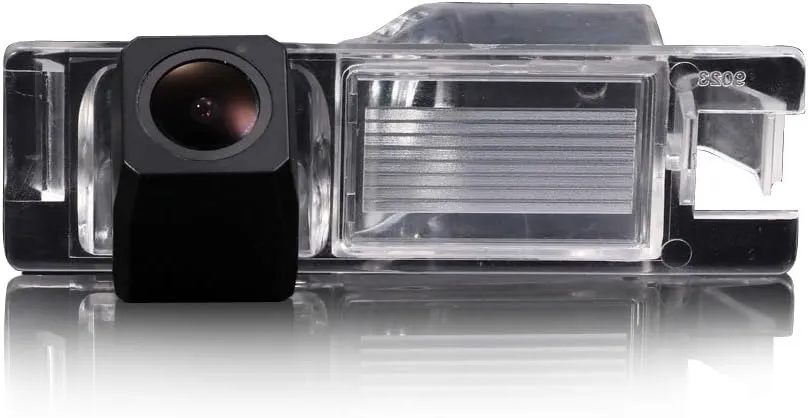

- Parking camera fit for Buick New Lacrosse from 2009/2010/2011 / Opel Astra H 2004-2009
- Parking camera fit for Opel Corsa D 2006-2010 / Opel Zafira B 2005-2011 / Opel Vectra C 1995-2002
- Parking camera fit for Opel Insignia Haydo M1 MPE Fiat GRANDE Punto / Opel Tigra Meriva A / Lovns Coupe Buick Hideo Regal 2009
- Parking camera fit for Chevrolet Epical Lova Captiva Cruze Aveo / Opel Vauxhall Signum 2003
- We will send out the NTSC system for you, if you need PAL system, please just leave us a message after placing order
This product could fit for all below models as expected:
Opel Zafira Insignia Haydo MPE/M1 Astra
Chevrolet Malibu,Buick Excelle XT/Regal/Fiat Grande Punto
Opel Astra H/Corsa D/Zafira B/Vectra C/Tigra Meriva A
Opel Antara 2011-2014
Chevrolet Cruze Epica Lova Aveo Captiva Chevy Lacetti Matis HHR
Opel Vauxhall Signum 2003
Technique Parameter:
1. TV System: NTSC (If you need PAL, please leave a message)
2. Resolution: 480/520 TV lines
3. Lens Angle: 170°
4. S/N ratio: more than 48db(AGC-OFF)
5. Video Color: Colorful
6. Video Output: 1.0Vp-p,75(Omega)
7. Image Device: 1/4 inch color
8. Sensing Area: 5.78 x 4.19mm
9. Sync. System: Internal
10.Power Supply: DC 12V
11.White Balance: Auto
12.Waterproof Class: ip 66
13.Effective Pixels: 628 x 586 Pixels
14.Electronic Shutter: 1/60-1/10000 seconds
15.Current Consumption: <=150mA
16.Current Consumption: 90mA Max.
17.Storage Temperature: -40°C to 60°C, RH95% Max.
18.Minimum Illumination: 0.3Lux/F1.2
19.Operating Temperature: -30°C to 50°C, RH95%
Package Content:
1 * Car CCD camera
1 * 6M Video cable
1 * 1M Power cable
1 * User manual
